1000 TPD Gold CIL Processing Plant in Venezuela

Project Date: May 2016
Country: Venezuela
Processing Capacity: 1,000 tonnes per day
Ore Types: Oxide and sulfide gold ores
Gold Grades: 5 g/t for oxide ore; 10.7 g/t for sulfide ore
Process: Whole-ore cyanidation with carbon-in-leach (CIL)
Reported Gold Leaching Rates: 93.75% for oxide ore; 95% for sulfide ore

Ore Characteristics and Gold Leaching Results

The 1000 TPD gold processing project in Venezuela involved both oxide and sulfide ores, with gold identified as the principal valuable element for recovery.

The oxide ore had a gold grade of 5 g/t and a reported gold leaching rate of 93.75% using whole-ore cyanidation. The sulfide ore contained 10.7 g/t gold and achieved a reported leaching rate of 95% using the same processing route.

These figures refer to gold leaching performance for the respective ore types, rather than overall plant gold recovery.

1000TPD Gold CIL plant in Venezuela - 1000 TPD Gold CIL Processing Plant in Venezuela

Gold CIL Processing Flowsheet

The plant flowsheet covered crushing, grinding and classification, cyanidation and carbon adsorption, desorption and electrowinning, smelting, and tailings dewatering.

Crushing, grinding and classification: A single-stage open-circuit crushing process reduced the raw ore size. The crushed material then entered a single-stage closed-circuit grinding system with hydrocyclone classification to prepare the feed for cyanidation.

CIL and gold recovery: The ground slurry entered the carbon-in-leach circuit for cyanidation and activated carbon adsorption. Gold-loaded carbon was transferred to the desorption and electrowinning system, and the resulting gold-bearing sludge was sent for smelting.

Tailings handling: Tailings underwent thickening and dewatering before dry stacking.

Construction Challenges and Project Coordination

During project planning, Dasen Mining coordinated construction methods, resource supply and site activities. Implementation was challenged by shortages of materials, construction machinery, tools and skilled workers.

A particular concern was the handling of thin-walled tanks, which were vulnerable to deformation during lifting and transportation. The team developed project-specific handling and lifting arrangements to address this risk.

These measures addressed practical constraints in equipment handling and on-site construction, demonstrating the importance of coordinating plant design with local implementation conditions.

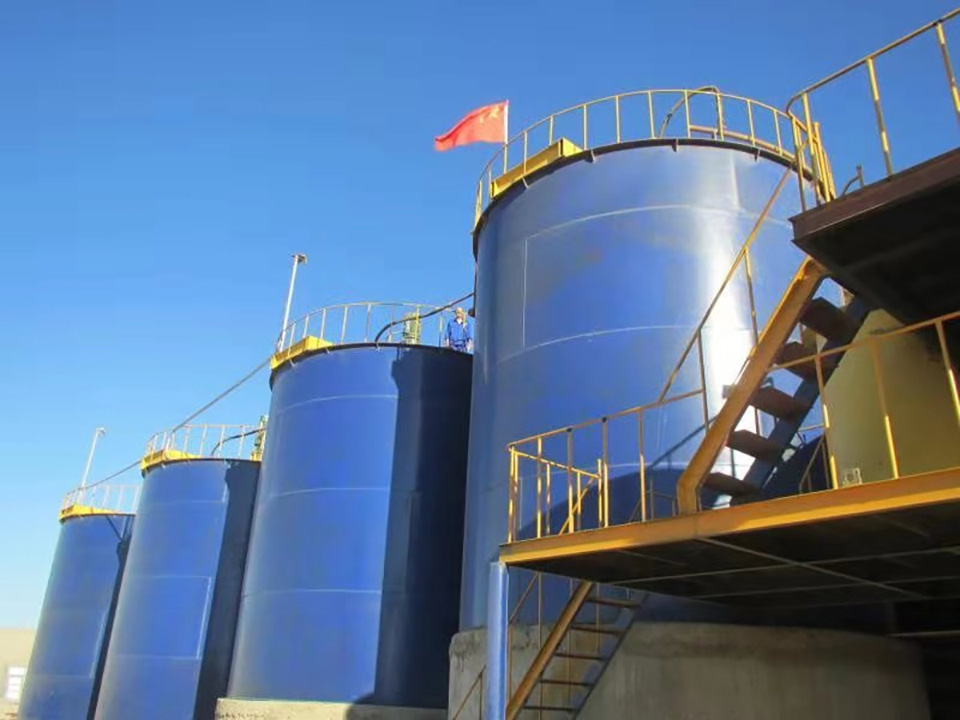

1000TPD Gold CIL plant in Venezuela1 - 1000 TPD Gold CIL Processing Plant in Venezuela

Factory-Based Equipment Supply and EPC Services

Dasen Mining is a gold processing equipment manufacturer with its own factory and offers mineral processing EPC services. Equipment supply and engineering support can be coordinated according to the agreed project scope and site requirements.
